Molten Salt Furnace

500 Centigrade Moving Grate Coal Fired Molten Salt Heaters

Introduction of Molten Salt Heater With coal as fuel, molten salt as heat carrier, RYG series coal fired molten salt heaters sends the hot liquid molten salt by circulation pump ...
Product Details

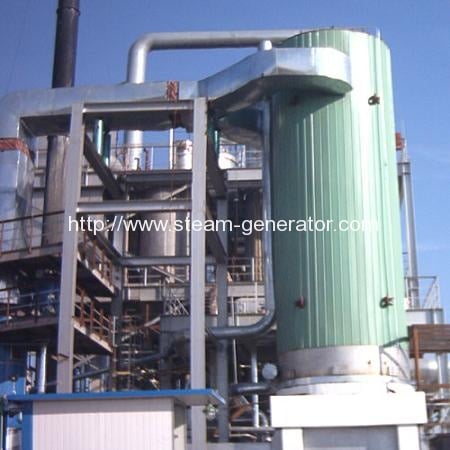

molten salt furnace (2)

Introduction of Molten Salt Heater


With coal as fuel, molten salt as heat carrier, RYG series coal fired molten salt heaters sends the hot liquid molten salt by circulation pump to the heating using equipment, and then returns the liquid back to the furnace for heating again. It is a special industrial heater under direct liquid circulation. In a high temperature of 350 – 500 ℃, Thermal oil heater cannot be used and only molten salt heat carrier can reach such high temperature. The whole system is composed of heating furnace, circulation pump, melting slot. The molten salt in the melting slot is pumped into the heating furnace by the circulation pump for heating, and then is pumped into the using equipment in a certain temperature. The molten salt will return back into the melting slot after supplying the heat. Molten Salt Heaters can be used under lower operating pressure and gets higher operating temperature. The heat supplying temperature is stable and can be adjusted accurately. It works stably within adjusted load section and keeps optimum thermal efficiency. It possesses the characteristics of complete operating control and safety monitoring device etc.

Parameter Table of Coal Fired Molten Salt Heaters


Item

MSF-1400MA

MSF-1900MA

MSF-2400MA

MSF-3000MA

MSF-3500MA

Rated Thermal Power

Kcal

120×104

160×104

200×104

250×104

300×104

KW

1400

1900

2400

3000

3500

Thermal Efficiency %

65

Pressure Mpa

1.1

1.1

1.1

1.1

1.1

Max. Temp.

450

450

450

450

450

Circulation Oil m3/h

80

90

100

120

140

Pipe DN

125

125

150

150

150

System Power kW

80

90

100

120

120

Fuel

Coal

Fuel Weight kg/h

350

480

600

720

900

Dimension

L mm

4800

4800

6900

6900

7500

W mm

2100

2100

2500

2500

2500

H mm

6300

7600

8800

10000

8500

Total Weight kg

20000

25000

30000

35000

41000



Item

MSF-5200MA

MSF-6600MA

MSF-7000MA

MSF-9300MA

MSF-14000MA

Rated Thermal Power

Kcal

450×104

550×104

600×104

800×104

1200×104

KW

5200

6600

7000

9300

14000

Thermal Efficiency %

65

Pressure Mpa

1.1

1.1

1.1

1.1

1.1

Max. Temp.

450

450

450

450

450

Circulation Oil m3/h

160

250

300

350

550

Pipe DN

200

200

250

250

300

System Power kW

160

240

240

320

400

Fuel

Coal

Fuel Weight kg/h

1200

1500

1800

2200

3300

Dimension

L mm

8700

8700

8700

10000

12500

W mm

3000

3480

3480

4400

4400

H mm

10000

12500

13500

16200

18500

Total Weight kg

55000

65000

80000

145000

220000



Layout Drawing of Coal Fired Molten Salt Heaters


RYG-Molten-Salt-Heater-Layout-Drawing



Processing Flow of Molten Salt Heaters


RYG-Molten-Salt-Heater-Processing-Flow



General Drawing of Molten Salt Heaters


RYG-Molten-Salt-Heater--General-Drawing
